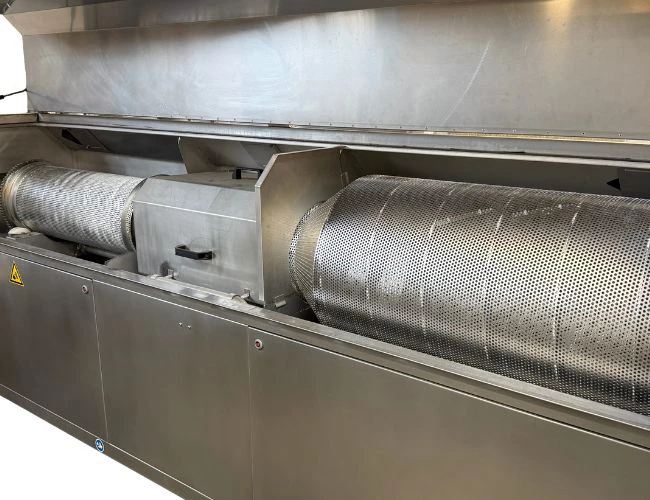

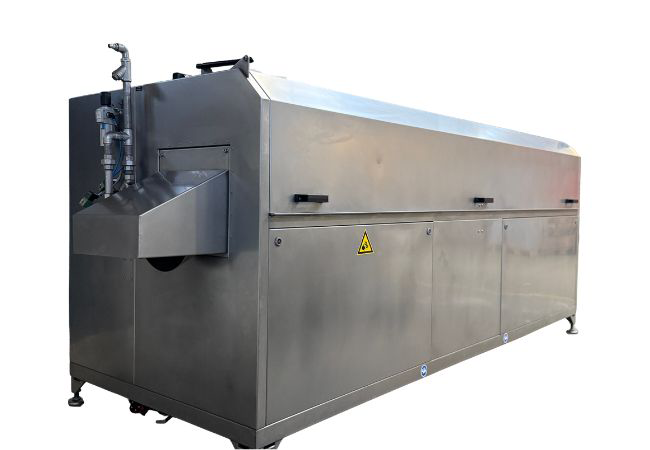

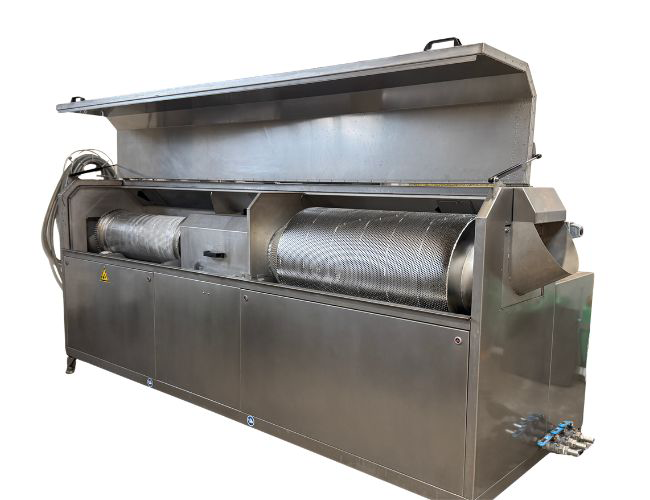

Demo Drum Washer 350 UST Ultrasonic
This demo Drum Washer 350 UST is designed as a compact and efficient solution for cleaning parts directly within the production line. The system utilizes ultrasonic cleaning technology, where high-frequency sound waves transmitted through a cleaning fluid provide deep and effective cleaning – even for components with holes, cavities, and complex geometries.
The cleaning process is gentle and non-abrasive, making it ideal for parts with high cleanliness requirements. Its energy-efficient design helps reduce operating costs and minimize manual handling, resulting in high uptime and reliable operation in industrial production environments.
1
Wash, rinse and dry in a single process
Handles the entire cleaning process automatically, reducing both cycle times and manual handling.
2
Reliable 24/7 operation
Built in stainless steel and equipped with Siemens PLC touch screen and Grundfos pump, ensuring reliable operation, high uptime, and long service life.
3
Energy-efficient and sustainable operation
A fully insulated design, hot-air drying, and automatic level and pressure monitoring help optimize both energy and water consumption.
4
Modular design
The modular design makes the cleaning system easy to adapt, expand, and service. This provides long-term flexibility while helping reduce maintenance time and production downtime.
Standard Equipment
- Siemens PLC touch screen
- Grundfos pump
- Fully insulated construction
- Energy-efficient design
- Automatic level and pressure monitoring
Optional Features
- Oil separator
- Filtration system
- Automatic chemical dosing
- Adjustable drum speed
- Integration with existing production lines
- Remote access and service via network connection
- Service and spare parts package
Technical Specifications
| General | Wash zone | ||
| Length | 3000 mm | Flow rate | 100 L/min |
| Width | 1130 mm | Tank capacity | 210 L |
| Height | 1260 mm | Temperature range | 30-60°C |
| Weight | 725 kg | Heating power | 12 kW |
| Power supply | 3 x 400 V/50 hz+N+ PE | Ultrasonic | 3 kW |
| Consumption | 57 A | ||
| Rinse zone | |||
| Flow rate | 200 L/min | ||
| Drum | Tank capacity | 210 L | |
| Diameter | 500/300 mm | ||
| Speed | 1-5 rpm | Drying zone | |
| Perforation size | 2-10 mm | Air flow | 3500 L/min |
| Temperature range | 40-110°C |
Environmental Benefits of Choosing a Demo Maschine
The Drum Washer 350 UST is energy-efficient in operation and is available as a demo machine, offering a proven solution with a short delivery time and lower investment cost. The combination of documented performance, verified functionality, and efficient operation supports responsible resource utilization in daily production.
Built on 38 Years of Experience in Industrial Cleaning Systems
For more than 38 years, KSN Industri has developed innovative industrial cleaning systems for demanding production environments. Combining practical experience with continuous product development, we create solutions where reliability, energy efficiency, and service-friendly design are considered from the very beginning.
The result is stable processes, high uptime, and equipment that delivers reliable performance day after day.
Contact Us
Are you interested in this demo Drum Washer 350 UST, or are you looking for a specific type of cleaning system?
We are ready to advise you on current availability, technical questions, delivery options, or any other requirements you may have.
